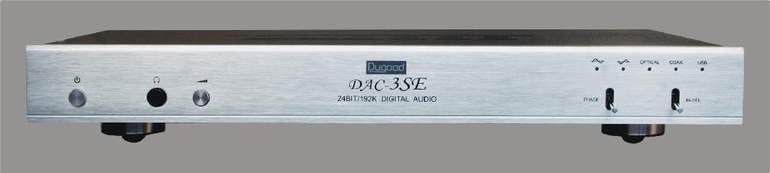

Offers ideal sound quality improvement for PC and affordable sound resource equipment better version of Ideal 3rd--DAC-3SE
Features of new product: DAC-3SE is a better version of Ideal 3rd version. Apart from the optical fibre and coaxial digital input from the old version, the new version has added USB digital input socket which can be directly connected to computer and has achieved significant PC HI-FI function. After sound adjustment, the sound quality of this machine has greatly improved, especially the sound density. The entire sound quality is sweet, natural and precise.
|
|
|

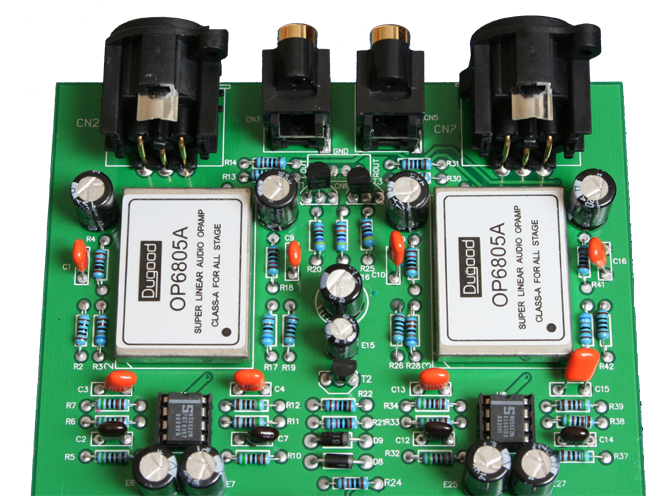

True and ballanced output from DAC to XLR. Dugood specially designed OP6805A pure Class A operation/amplification modular as its RCA output.
|
|
|
|

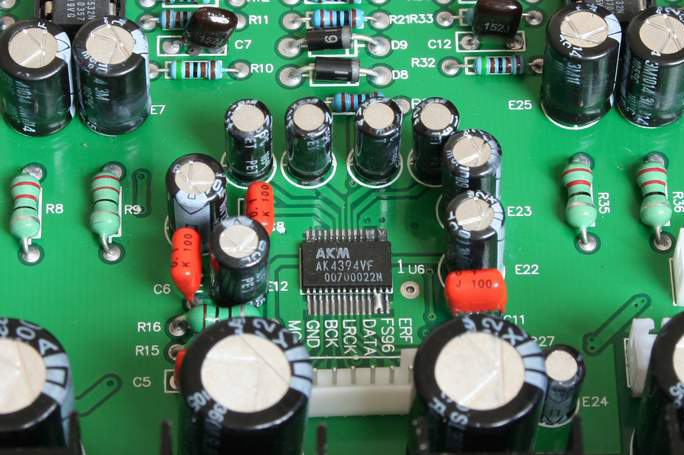

Uses 24BIT/192K DAC chip AK4394VF as digital to analog converter for stereo sound. |
|

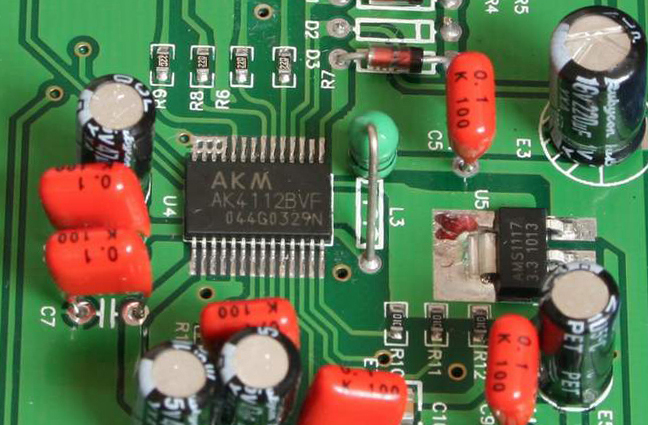

Digital reception applies AK4112 |
|
 |

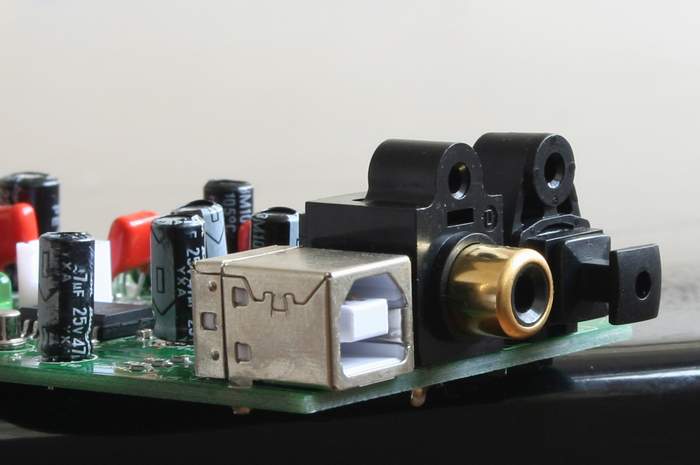

Three channel digital input USB, RCA and optical fibre. |
|

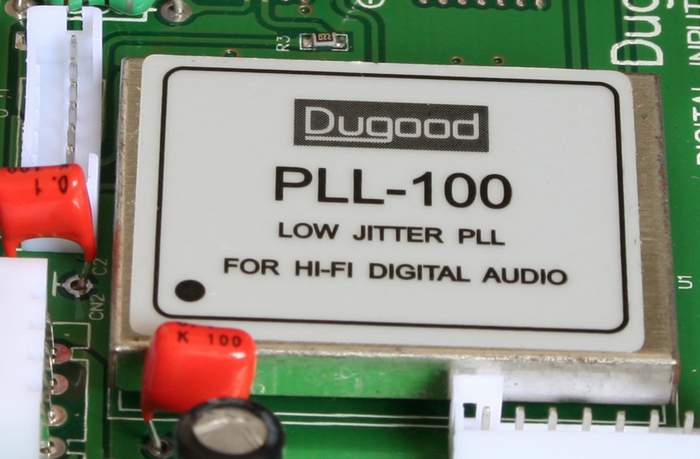

Uses phase locking and simultaneous shaping technology to reduce jitter. |
 |
|
1. Introduction of features DAC chip AK4394VF as digital to analog converter for stereo sound. Digital reception applies AK4112. Uses phase locking and simultaneous shaping technology to reduce jitter. True and ballanced output from DAC to XLR. Dugood specially designed OP6805A Class A operation/amplification modular as its RCA output. The headphone inside suits various headphones from 32 to 300 ohm. 2. Technical indicators Dynamic range: 117dB@24BIT,98dB@16BIT Harmonic distortion: smaller than 0.0015%(20-20K Hz） Signal to noise ratio: 110db Frequency response: 5-50KHz(+0,-3dB) Isolation: bigger than 100dB Size:436mm*260mm*68mm Net Weight:3.8kg 3. Instructions Connect optic fibre, RCA coax and USB to DVD/CD/Top set box/loader/computer. Remember to set the input mode into PCM mode (you do not need to set CD player, CD loader or computer). Then connect RCA audio output of LXR ballanced output onto your speaker and amplifier. The phase switch of the faceplate is used to switch the phase mode of audio output so that you can find “true phase” for your system. The sound difference is very fine and the one with more clear sound is considered to be true phase. Note: while not using USB output mode, you are recommended to take off USB plug in order to avoid the noise disturbance coming from the computer. |
|
|
4. Packing list 1) 1xPower cord, 1xaudio cord and 1xUSB cord 2) 1xinstruction and 1xwarranty card. |
|
|
|
|
