HDAP Hi-fi digital audio player

Innovative design

     Dugood is about to introduce HDAP digital audio player that is specially used for playing audio documents of various formats. It can hold SATA large-capacity hard disk inside, and can be connected to memory stick and SD card. Its treelist document management and searching function make things convenient. Just one large-capacity hard disk can save more than a thousand CD music files, which will make HDAP your ¡°music storeroom¡±. HDAP machine¡¯s high quality sound and its convenience will help you enjoy music more!

Features:

Support memory stick, SD card, hard disk player and hard disk partition.

Audio format supported: wav(24bit/192KHz£©¡¢ape£¨cue)¡¢flac¡¢mp3¡¢wma¡¢aac¡¢alac¡¢ogg.

With USB-PC interface which allows you to copy files onto hard disk placed inside directly.

OSD supports simplified Chinese, traditional Chinese and English.

BNC digitaloutput£¬coaxial digital outpu.



¡¡

Design features

True 24bit digital audio processing kernel and maximum 192K sampling.

Super low jitter will guarantee high quality sound.

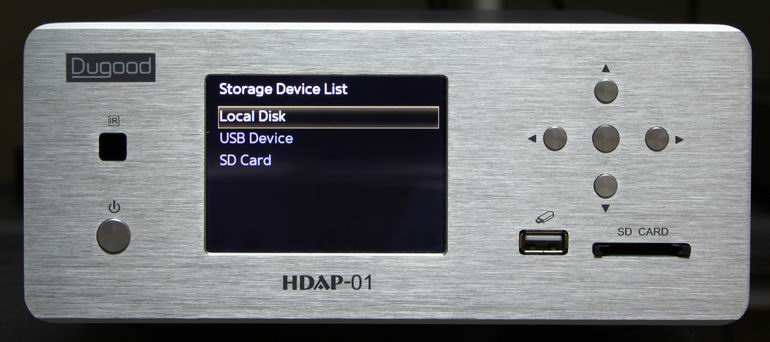

HDAP-01D Front panel

1.Power.

2.IR receiver windows.

3.LCD display.

4.Contrl key.

5.USB disk in.

6.SD card in.

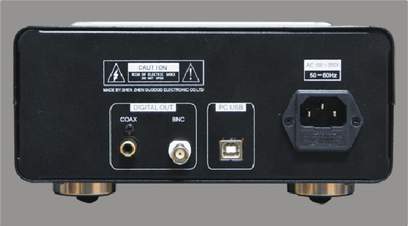

HDAP-01D Rear panel

1.COAX digital audio output.

2.BNC digital audio output.

3.USB to PC,can copy files from PC to inside HD.

4.AC power in,90-250V.

Remote

¡¡

1.Mute.

2.Play mode select.

3.Number key.

4.Back key.

5.Menu operation key.

6.Stop.

7.Play/Pause.

8.Volume key.

9.PRE/NEXT.

10.Fast play,2-16 time speed.

11.Setup.

¡¡

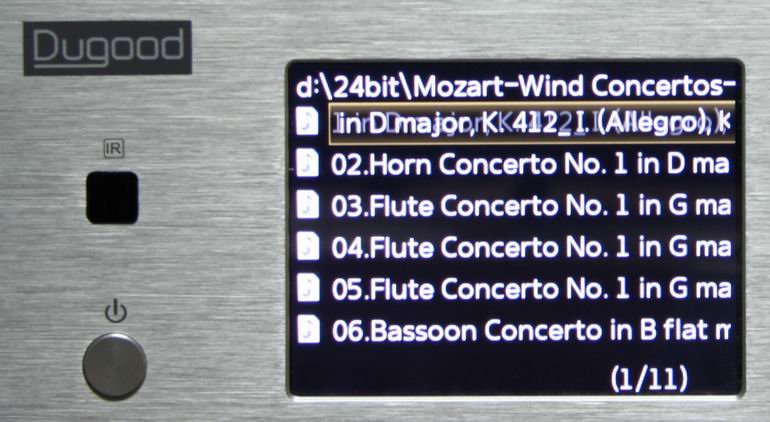

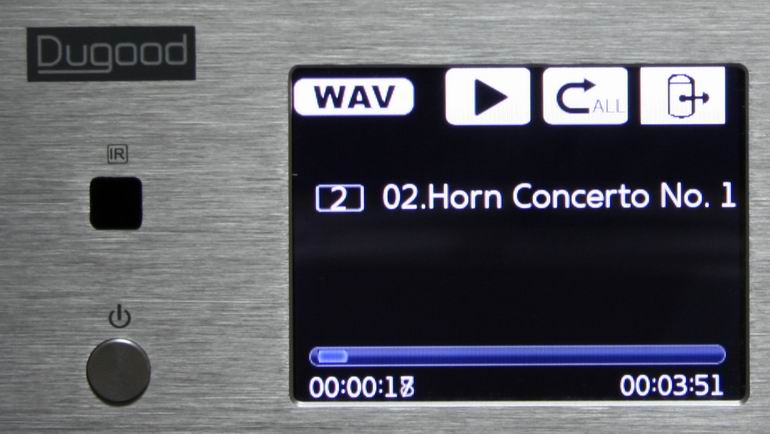

List interface:   play interface:

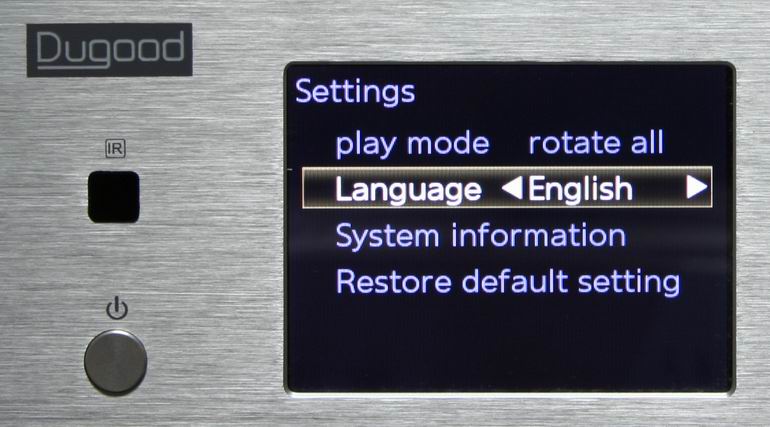

Setup interface:

¡¡

Size:215mm*110mm*310mm

Net Weight:5 kg

¡¡

Packing LIST:

1. Power line 1pcs

2. USB line 1pcs

3. Coax line 1pcs

4. Remote 1pcs

5.User manual
