HDAP Hi-fi digital audio player

Innovative design

     Dugood is about to introduce HDAP digital audio player that is specially used for playing audio documents of various formats. It can hold SATA large-capacity hard disk inside, and can be connected to memory stick and SD card. Its treelist document management and searching function make things convenient. Just one large-capacity hard disk can save more than a thousand CD music files, which will make HDAP your ¡°music storeroom¡±. HDAP machine¡¯s high quality sound and its convenience will help you enjoy music more!

Features:

Support memory stick, SD card, hard disk player and hard disk partition..

Audio format supported: wav(24bit/192KHz£©¡¢ape£¨cue)¡¢flac¡¢mp3¡¢wma¡¢aac¡¢alac¡¢ogg.

With USB-PC interface which allows you to copy files onto hard disk placed inside directly.

OSD supports simplified Chinese, traditional Chinese and English.

Coaxial digital output, RCA output.

¡¡

Design features

True 24bit digital audio processing kernel and maximum 192K sampling.

Super low jitter will guarantee high quality sound.

Audio decoding applies 24bit/192K AK4394VF that has 120db dynamic range.

HDAP-01 Front panel

 1.Power.

 2.IR receiver windows.

 3.LCD display.

 4.Contrl key.

 5.USB disk in.

 6.SD card in.

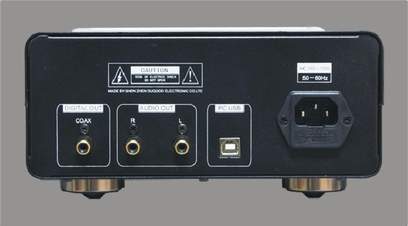

HDAP-01 Rear panel

1.Digital audio output.

2.Right channal analog audio output.

3.Left channal analog audio output.

4.USB to PC,can copy files from PC to inside HD.

5.AC power in,90-250V.

Remote

1.Mute.

2.Play mode select.

3.Number key.

4.Back key.

5.Menu operation key.

6.Stop.

7.Play/Pause.

8.Volume key.

9.PRE/NEXT.

10.Fast play,2-16 time speed.

11.Setup.

¡¡

¡¡

¡¡

List interface: play interface:


Setup interface:

Technical indicators:

THD+N£º0.005£¥

S/N£º105dB
DR£º110d
B

Size:215mm*110mm*310mm

Net Weight:5 kg

Packing LIST:

1. Power line 1pcs

2. USB line 1pcs

3. RCA audio line 1pcs

4. Remote 1pcs

5.User manual
