HDAP Hi-fi digital audio player Innovative design Dugood is about to introduce HDAP digital audio player that is specially used for playing audio documents of various formats. It can hold SATA large-capacity hard disk inside, and can be connected to memory stick and SD card. Its treelist document management and searching function make things convenient. Just one large-capacity hard disk can save more than a thousand CD music files, which will make HDAP your “music storeroom”. HDAP machine’s high quality sound and its convenience will help you enjoy music more!
Features： Support memory stick, SD card, hard disk player and hard disk partition. Audio format supported: wav(24bit/192KHz）、ape（cue)、flac、mp3、wma、aac、alac、ogg. With USB-PC interface which allows you to copy files onto hard disk placed inside directly. OSD supports simplified Chinese, traditional Chinese and English. Coaxial digital output, RCA and ballanced audio output.
Design features True 24bit digital audio processing kernel and maximum 192K sampling. Super low jitter will guarantee high quality sound. Hard disk with drawers will offer convenient change and disassembly. Audio DA applies top multi-bit chip DF1704＋PCM1704 fom BB company. Pure class A operation/amplification modular OP6805A for audio output will guarantee superior sound quality.
|
|
|

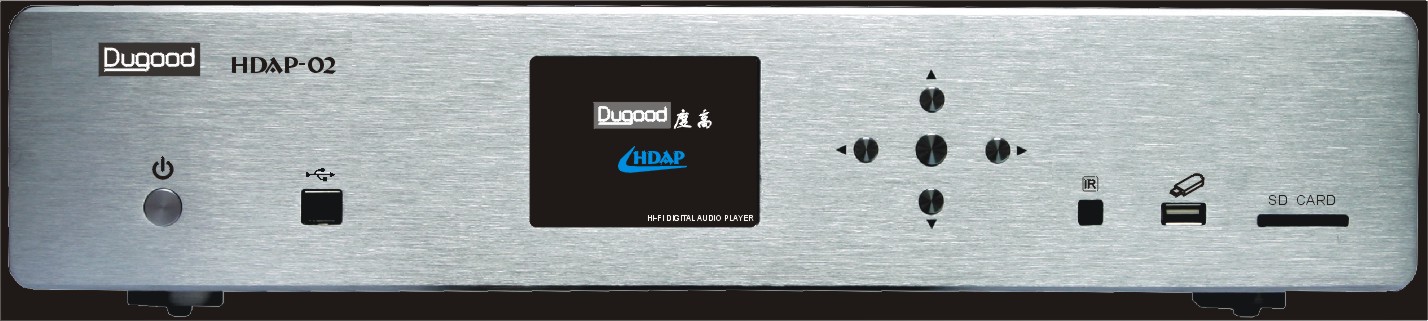

HDAP-02 Front panel |
|
|
|
|
|
1.power. 2.USB to PC,can copy files from PC to insjide HD. 3.LCD display. 4.Contrl key. 5.IR receiver windows. 6.USB disk in. 7.SD card in. |
|
|

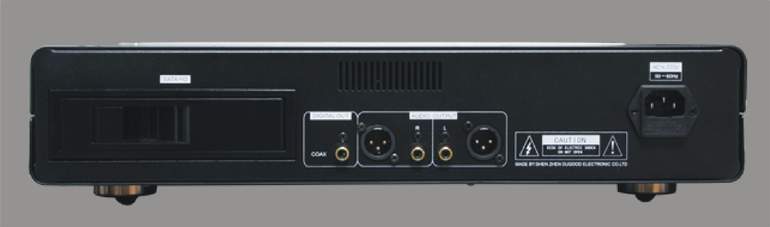

HDAP-02 Rear panel |
|
 |
|
|
1. 3.5" SATA HD in. 2. Digital audio output. 3. Right channal XLR analog audio output. 4. Right channal RCA analog audio output. 5. Left channal RCA analog audio output. 6. Left channal XLR analog audio output. 7. AC power in,90-250V. |
|
|
Remote |
|
|
1.Mute. 2.Play mode select. 3.Number key. 4.Back key. 5.Menu operation key. 6.Stop. 7.Play/Pause. 8.Volume key. 9.PRE/NEXT. 10.Fast play,2-16 time speed. 11.Setup.
|
| List interface: | play interface: |
 Setup interface:
|
|
|
Technic index: THD+N：0.0025％
S/N：110dB Size:440mm*110mm*325mm Net Weight:9kg |
|
|
LIST: 1. Power line 1pcs 2. USB line 1pcs 3. RCA audio line 1pcs 4. Remote 1pcs 5.User manual |
|
|
|
|
